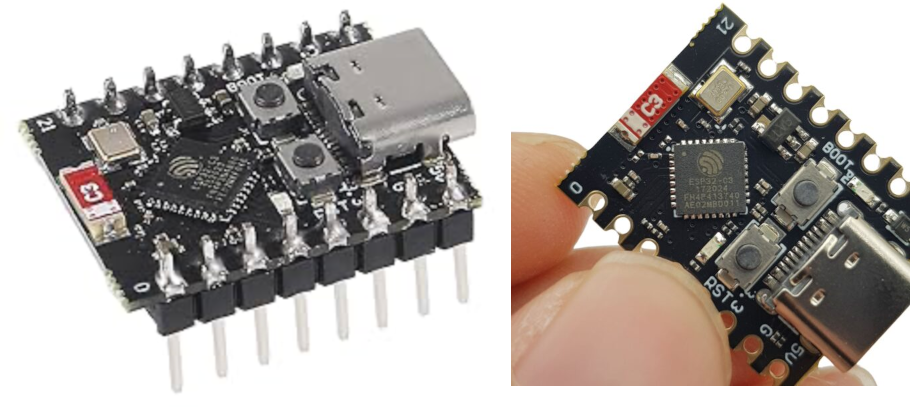

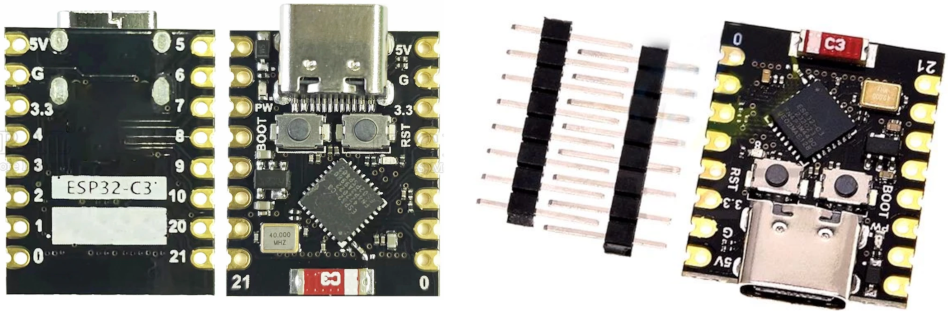

The ESP32-C3 SuperMini is a compact, low-power development board based on the ESP32-C3 chip, featuring Wi-Fi and Bluetooth 5 (LE) connectivity. It’s designed for space-constrained projects, offering a 32-bit RISC-V single-core processor with a maximum frequency of 160MHz. The board includes 400KB of SRAM, 384KB of ROM, and 4MB of built-in flash memory.
SPECIFICATIONS:
- Processor: 32-bit RISC-V single-core, up to 160MHz.
- Connectivity: 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE).
- Memory: 400KB SRAM, 384KB ROM, 4MB flash.
- Interfaces: 1x I2C, 1x SPI, 2x UART, 11x GPIO (including PWM), 4x ADC.
- Power: Can be powered via USB-C or 5V/GND pins (3.3-6V).
- Form Factor: Extremely compact, measuring 22.52 x 18 mm.
- Onboard LED: Blue LED on GPIO 8.
- Other Features: Reset and Boot buttons, support for hardware SPI, ADC, and PWM.
- Ultra-low power consumption: Deep sleep power consumption can be as low as 43µA.
POWERING THE BOARD:
- The SuperMini can be powered via the USB-C connector or through the 5V and GND pins.
- When using an external power supply, ensure that it is within the 3.3-6V range.
- When using an external power supply, do not connect the USB-C connection at the same time.
Check out the page below for the best options available to supply power to your ESP32 C3 Supermini board:
HOW TO POWER YOUR ESP32C3 SUPERMINI SAFELY

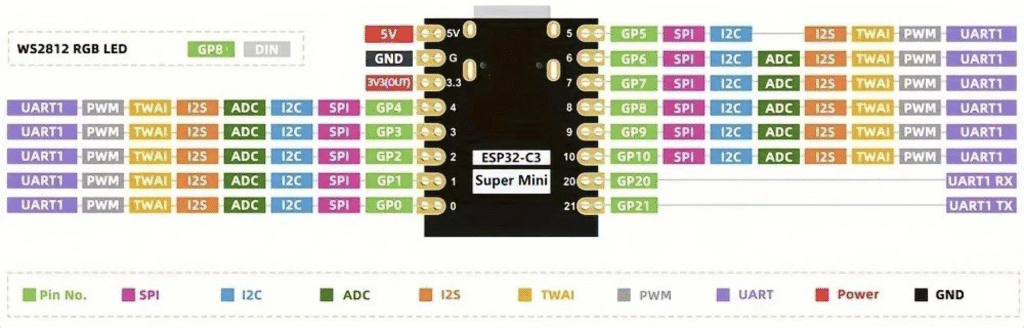

ESP32 C3 SUPERMINI GPIO PIN OUT

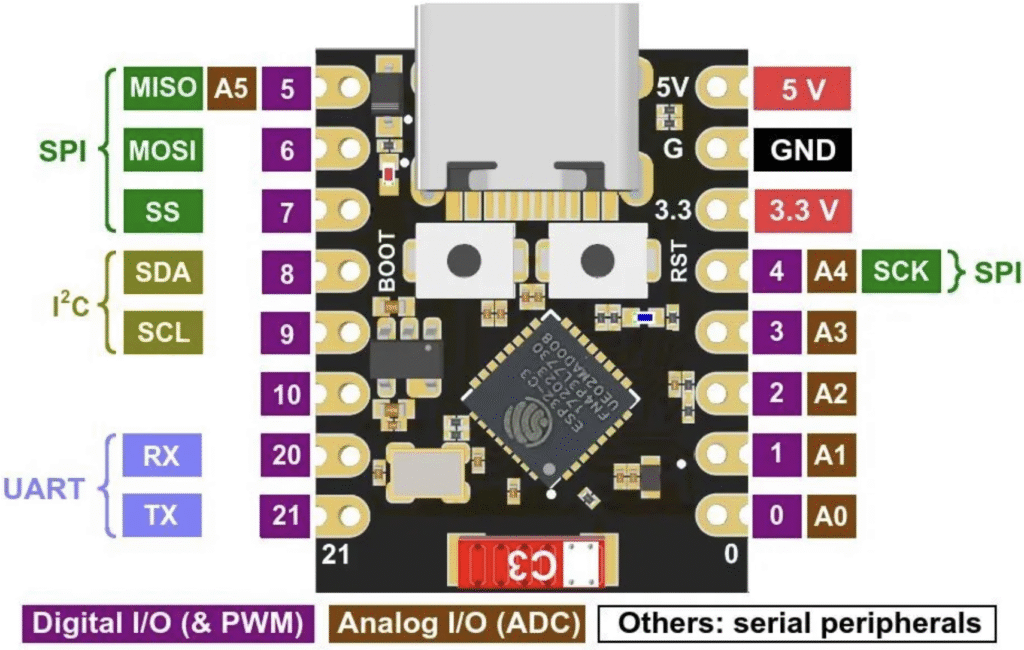

Some People prefer the Rduino style to labelling pins in their software, the pin out below describes such a naming scheme
ESP32 C3 Supermini Arduino Style GPIO ID/Numbering

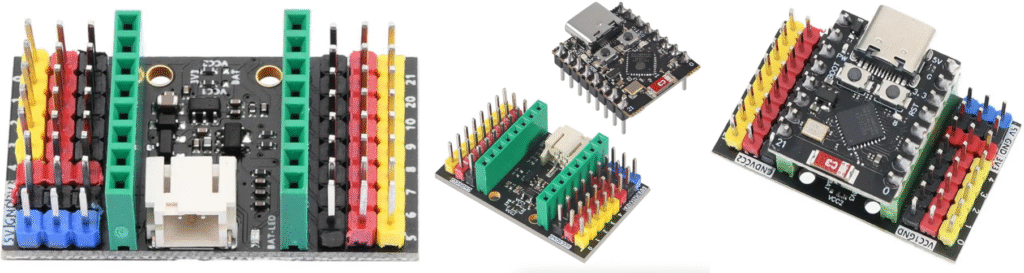

ESP32 C3 SUPERMINI EXPANSION BOARD
The ESP32-C3 SuperMini Expansion Board is a dedicated companion board designed to enhance the functionality and usability of the compact ESP32-C3 SuperMini development board. This expansion board brings out all 10 GPIO pins for easy connection to sensors, modules, and other peripherals, making prototyping and development more convenient.
One of its standout features is onboard support for a 3.7V lithium battery (PH2.0 interface), including charging capability via USB. A green LED indicates active charging and turns off when the battery is fully charged.
FEATURES
- Compatible with: ESP32-C3 SuperMini
- Power Input: 3.7V lithium battery (PH2.0 interface)
- Power: Supports 3.7V lithium batteries with USB charging with indicator LED
- Voltage Output: 3.3V (default), switchable to 3.7V via solder jumper
- I/O Pins: Breaks out all 10 GPIOs.
- Dimensions: 37.4 x 22.5mm.

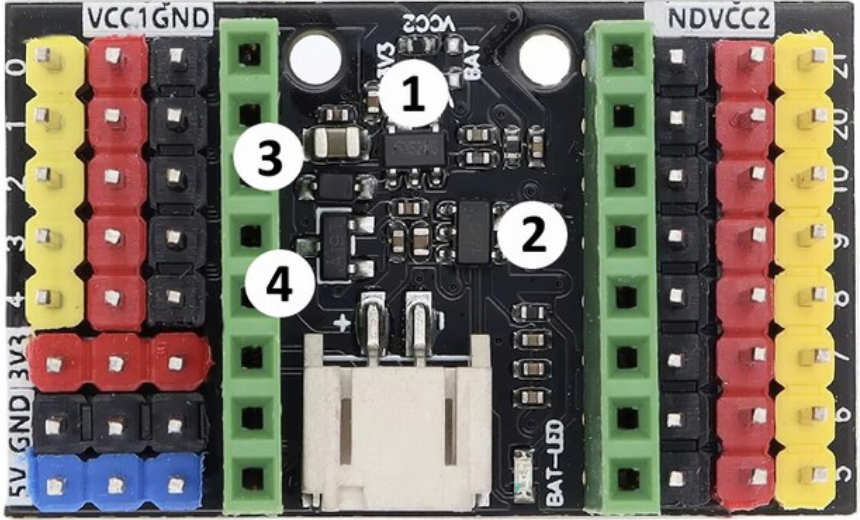

- Additional Components: Features voltage regulators, charging management chip, and Schottky diodes.
- LTH7R: constant current/voltage charge management chip, used for charging single-cell lithium batteries
- S2WD: high speed, high PSRR, low noise LDO regulator
- W5: Schottky diode
- A19T: P-channel MOSFET
HOW TO POWER YOUR ESP32C3 SUPERMINI SAFELY
